Product Description:
Design Features:
The floating joint design is capable of absorbing eccentricity
between the passive body and cylinder, as well as insufficient
accuracy of parallelism without the need for axis alignment. This
design simplifies installation process.
In addition, this design is built to handle high temperature
environments ranging from -5 ℃ to 60 ℃, making it perfect for
extreme temperature applications. Lastly, the floating joint can
handle high loads up to 28000 N of maximum applied tensile force on
both its compression and tension sides, demonstrating excellent
load bearing capacity.
Technical specifications:
Installation form: Basic type, providing a stable connection
through method 2.
It is suitable for use with cylinders that have a diameter of
100mm.
The standard thread specification of M26X1.5 makes it easy to
connect with cylinders and other pneumatic components.
Allowing a certain eccentricity of 0.5mm, the swing angle can reach
up to ± 5 °, providing greater flexibility and adaptability.
It is capable of operating within a pressure range of 0.05-1 MPa,
making it suitable for multiple applications that operate under
various pressure levels. Lastly, it is built to withstand a wide
range of environmental and fluid temperature conditions, from -5~60
℃.
Technical Parameters:
| Connection | Flange |
| Color | Black |
| Connection Type Cylinder Side | Tapped |
| Type | Fittings |
| Series | JA Series |
| Cylinder Used | Air Cylinder / Hydraulic Cylinders |
| Applicable Cylinder Thread Size | SMC JA Series Floating Joints |
| Connection | SMC floating joint |
| JA6-3-050 | JA80-20-150 |
| JA10-4-070 | JA80-20-250 |
| JA15-5-080 | JA80-22-150 |
| JA15-6-100 | JA100-24-300 |
| JA20-8-100 | JA100-26-150 |
| JA20-8-125 | JA100-27-150 |
| JA20-8-150 | JA100-27-200 |
| JA25-10-150 | JA125-27-200 |
| JA30-10-125 | JA140-30-150 |
| JA32-10-100 | JA160-30-200 |
| JA40-12-125 | JA160-33- 200 |
| JA40-12-150 | JA160-36-150 |
| JA40-12-175 | JA160-36-200 |
| JA40-14-125 | JA180-40-150 |
| JA40-14-150 | JA180-40-200 |
| JA63-16-150 | JA180-42-150 |
| JA63-16-200 | JA180-42-200 |
| JA63-18-150 | |
Applications:
Pneumatic and hydraulic systems require efficient connection
solutions for cylinders and hydraulic cylinders. In situations
where eccentricity and parallelism need to be absorbed, a floating
joint is suitable.
Automated machinery relies on stable operation to function
properly. For this reason, a floating joint is commonly used to
ensure a stable connection between cylinders and driven bodies.
The handling system benefits greatly from a stable connection
between cylinders, as this improves handling efficiency. A floating
joint is an ideal solution for ensuring stable operation of
cylinders in the handling system.

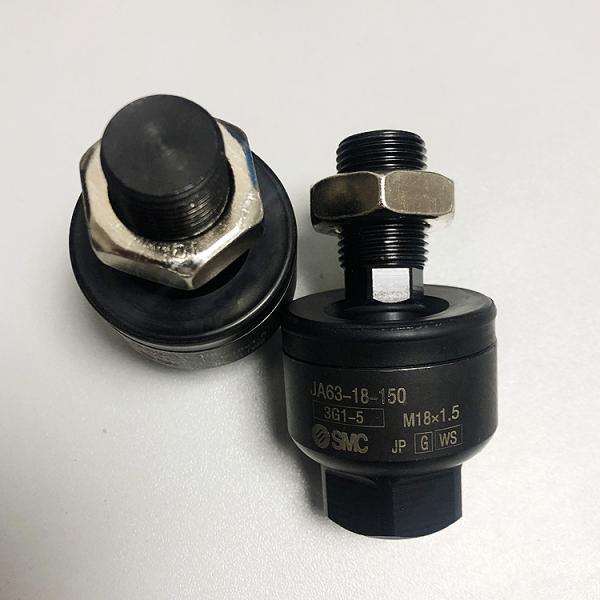

SMC's JA series floating joints are an excellent choice for
connecting pneumatic systems due to their efficient design and
performance. This product is widely used in the field of industrial
automation as it offers a flexible and reliable connection
solution.
Users of SMC's JA series floating joint have given it high praise
for its ability to absorb eccentricity and insufficient
parallelism. The product also has a high temperature tolerance and
can respond well under high load, making it a reliable choice for
pneumatic connection needs.
In conclusion, SMC's JA series floating joints are an efficient and
reliable solution for connecting pneumatic and hydraulic systems.
They offer an excellent design and performance that satisfies the
needs of industrial automation.
Packing and Shipping:
Product Packaging:
- The SMC Solenoid Valves are carefully packed in a sturdy cardboard
box to ensure safe transportation.
- The box is labeled with the product name, model number, and
quantity for easy identification.
- Inside the box, the solenoid valves are further protected with
bubble wrap or foam padding to prevent any damage during shipping.
Shipping:
- We offer worldwide shipping for the SMC Solenoid Valves.
- Shipping rates and delivery times vary depending on the destination
and shipping option selected by the customer.
- Orders are typically processed and shipped within 1-2 business
days.
- Customers will receive a tracking number via email once the order
has been shipped.
