Product Description:
Design Features:

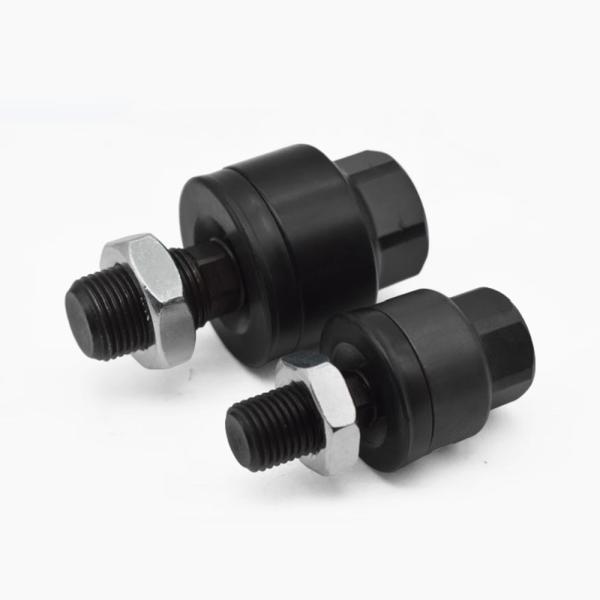

The floating joint design of this product is designed to perform
excellent absorption of eccentricity between the passive body and
the cylinder, as well as the insufficient accuracy of parallelism
without the need for axis alignment, simplifying the installation
process.
Furthermore, this product is suitable for working environments that
range from -5 ℃ to 60 ℃, ensuring connection stability under
extreme temperatures.
The product also has an impressive load-bearing capacity. Capable
of handling a maximum applied tensile force of 28000 N on both the
compression and tension sides, it demonstrates its suitability for
high load handling capacity applications.
Technical specifications:
Installation form: Basic type, providing a stable connection method
2.
Suitable cylinder diameter: 100mm, compatible with cylinder 1 with
a diameter of 100mm.
Thread specification: M26X1.5, the standard thread specification,
makes this product easy to connect with cylinders and other
pneumatic components.
The swing angle range is ± 5 °, allowing for a certain eccentricity
of 0.5mm, providing greater flexibility and adaptability. The
product is also suitable for various working pressures with a range
of 0.05-1 MPa.
Lastly, this design is suitable for a wide range of working
environments with environmental and fluid temperature ranging from
-5~60 ℃.
Technical Parameters:
| Attribute | Value |
|---|
| Series | JA Series |
| Connection | Flange |
| Type | Fittings |
| Cylinder Used | Air Cylinder / Hydraulic Cylinders |
| Color | Black |
| Connection Type Cylinder Side | Tapped |
| Applicable Cylinder Thread Size | Depends on specific model |
| Cylinder Exhaust Tailpipe Joint | Depends on specific model |
| JA6-3-050 | JA80-20-150 |
| JA10-4-070 | JA80-20-250 |
| JA15-5-080 | JA80-22-150 |
| JA15-6-100 | JA100-24-300 |
| JA20-8-100 | JA100-26-150 |
| JA20-8-125 | JA100-27-150 |
| JA20-8-150 | JA100-27-200 |
| JA25-10-150 | JA125-27-200 |
| JA30-10-125 | JA140-30-150 |
| JA32-10-100 | JA160-30-200 |
| JA40-12-125 | JA160-33- 200 |
| JA40-12-150 | JA160-36-150 |
| JA40-12-175 | JA160-36-200 |
| JA40-14-125 | JA180-40-150 |
| JA40-14-150 | JA180-40-200 |
| JA63-16-150 | JA180-42-150 |
| JA63-16-200 | JA180-42-200 |
| JA63-18-150 | |
Applications:
Application scenarios:
Pneumatic and hydraulic systems require suitable connectors,
especially in situations where eccentricity and parallelism need to
be absorbed. SMC's JA series floating joints are perfectly designed
for these situations, ensuring the stable and efficient operation
of cylinders and hydraulic systems. Additionally, these floating
joints are also used to connect cylinders and driven bodies in
automated machinery, guaranteeing the stable operation of the
overall system. In handling systems, the cylinders' stable
operation ensures that the handling efficiency is greatly improved.
Market positioning and user evaluation:
The market positioning of SMC's JA series floating joints is
targeted towards industrial automation. Their excellent design and
performance provide an efficient and flexible connection solution
for pneumatic systems, making them a widely used product in the
industry. Users have given high praise to the JA series floating
joint. The product performs well in areas such as absorbing
eccentricity and insufficient parallelism, high temperature
tolerance, and high load response ability. It provides users with a
stable and reliable pneumatic connection solution that has proven
its worth in countless applications.
Overall, SMC's JA series floating joints provide an efficient and
reliable solution for connecting pneumatic and hydraulic systems
with their excellent design and performance. They have become a
widely used and highly praised product in the industry of
industrial automation.
