    SMC Tapped Cylinder M10x 1 JA32-10-100 Fittings for Air/Hydraulic Cylinders

    Product Description:

    Design Features:

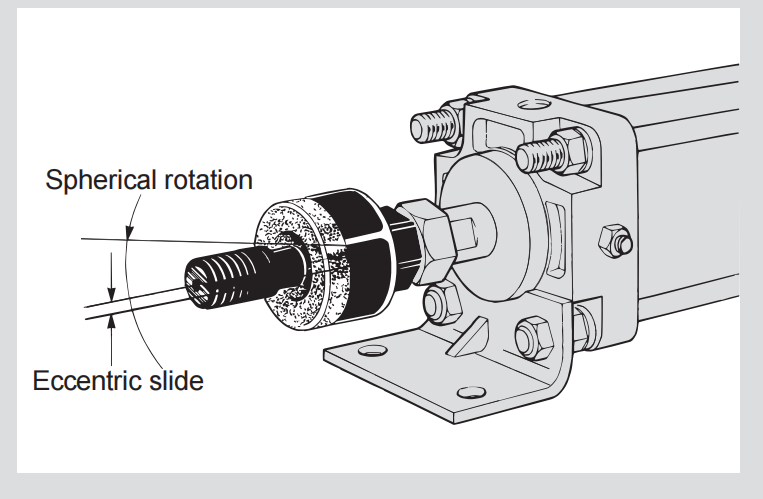

    The floating joint design is a crucial feature of our product. This design has the ability to absorb any eccentricity or parallelism that may occur between the passive body and the cylinder, which are common problems in traditional joint designs. Moreover, because there is no need for axis alignment, the installation process is greatly simplified. Additionally, our product boasts a high-temperature specification, and is suitable for working environments ranging from -5 ℃ to 60 ℃. This extraordinary range ensures connection stability under extreme temperatures. Lastly, this design results in excellent load-bearing capacity, with the maximum applied tensile force being 28000 N in both the compression and tension sides.

    Technical Specifications:

    Our product is of the basic type, providing a stable connection method 2. It is specifically designed to be used with cylinders that have a diameter of 100 mm. Additionally, it features a standard thread specification of M26X1.5, making it easy to connect with cylinders and other pneumatic components. The swing angle of our product is ± 5 °, which allows for a certain amount of eccentricity of 0.5 mm, providing greater flexibility and adaptability. This product is suitable for various working pressures, with a pressure range of 0.05-1 MPa. Lastly, it is important to note that this product is capable of handling a wide range of environmental and fluid temperatures, from -5 ℃ to 60 ℃, making it suitable for various working environments.

    Technical Parameters:

    Model/Specifications
    ModelApplicable
    bore size
    [mm]
    Applicable
    cylinder
    nominal
    thread size
    Maximum operating tension
    and compression force (N)

    Allowable
    eccentricity
    U[mm]
    Rotating
    angle
    Ambient
    temperature
    Basic type Flange type Foot type
    Standard/Thread nominal size-5 to 60℃
    JA6-3-0506M3x0.5190.5±5°
    JA10-4-07010M4x0.7540.5
    JA15-5-0801,015M5x0.81230.5
    JA15-6-10015M6x 11230.5
    JA□20-8-12520M8x1.251100110010000.5
    JA□30-10-1252,532M10x1.252500250020000.5
    JA□40-14-15040M14x1.54400440044000.75
    JA□63-18-1505,063M18x1.5110001100090001
    JA□80-22-15080M22x1.51800018000140001.25
    JA□100-26-150100M26x1.52800028000220002
    JA□140-30-150125,140M30x1.55400036000360002.5
    JA□160-36-150160M36x1.57100055000550003
    Semi-standard/Thread nominal size
    JA□20-8-10020M8x11100110010000.5±5°
    JA□25-10-15025M10x1.52500250020000.5
    JA□32-10-10032M10x12500250020000.5
    JA□40-12-1253,240M12x1.254400440044000.75
    JA□40-12-15040M12x1.54400440044000.75
    JA□40-12-1753,240M12x1.754400440044000.75
    JA□50-16-15050M16x1.5110001100090001
    JA□63-16-2005,063M16x2110001100090001
    JA□80-20-25080M20x2.51800018000140001.25
    JA□100-24-300100M24 x32800028000220002
    JA□100-27-150100M27x1.52800028000220002
    JA□125-27-200125M27x22800028000280002
    JA□160-33-200160M33x27100055000550003

    Applications:

    Application Scenarios:

    Pneumatic and hydraulic systems find the JA series floating joints suitable for connecting cylinders and hydraulic cylinders, particularly in situations where eccentricity and parallelism need to be absorbed.

    Automated machinery requires the floating joint to connect cylinders and driven bodies, ensuring the stable operation of the system.

    In the handling system, the JA series floating joint functions to ensure the stable operation of cylinders, thereby improving handling efficiency.

    Market Positioning and User Evaluation:

    SMC's JA series floating joints provide an efficient and flexible connection solution for pneumatic systems with their excellent design and performance. This positioning ensures the widespread use of SMC's JA series in the field of industrial automation.

    Users have given high praise for SMC's JA series floating joint, acknowledging its ability to absorb eccentricity and insufficient parallelism, tolerance to high temperature, and responsiveness to high load. The floating joint provides a stable and reliable solution to pneumatic connections.

    In Summary

    In conclusion, SMC's JA series floating joints present an efficient and reliable solution for connecting pneumatic and hydraulic systems with their excellent design and performance, and are widely used in the field of industrial automation.
