Product Description:
Design Features:
The floating joint design is able to overcome the issue of
insufficient absorption of eccentricity and parallelism. This
design is capable of absorbing the eccentricity between the passive
body and the cylinder, as well as inaccuracies in parallelism. This
eliminates the need for axis alignment and simplifies the
installation process.
Another design feature is its ability to withstand high
temperatures. It is suitable for working environments ranging from
-5℃ to 60℃, ensuring connection stability even under extreme
temperatures.
The floating joint also has a high load handling capacity. It can
withstand a maximum applied tensile force on both the compression
and tension sides of up to 28000 N, demonstrating its excellent
load bearing capacity.
Technical Specifications:
- Installation form: Basic type, providing stable connection method
2.
- Suitable cylinder diameter: 100mm, suitable for cylinder 1 with a
diameter of 100mm.
- Thread specification: M26X1.5, a standard thread specification that
makes it easy to connect with cylinders and other pneumatic
components.
- Swing angle: ± 5 °, allowing for a certain eccentricity of 0.5mm
and providing greater flexibility and adaptability.
- Pressure range: 0.05-1 MPa, suitable for various working pressures.
- Environmental temperature and fluid temperature: -5~60 ℃, suitable
for various working environments.
Technical Parameters:
| Parameter | Value |
|---|
| Type | Fittings |
| Connection | Flange |
| Cylinder Used | Air Cylinder / Hydraulic Cylinders |
| Color | Black |
| Connection Type Cylinder Side | Tapped |
| Series | JA Series |
| Hydraulic cylinder floating joint | Yes |
| JA6-3-050 | JA80-20-150 |
| JA10-4-070 | JA80-20-250 |
| JA15-5-080 | JA80-22-150 |
| JA15-6-100 | JA100-24-300 |
| JA20-8-100 | JA100-26-150 |
| JA20-8-125 | JA100-27-150 |
| JA20-8-150 | JA100-27-200 |
| JA25-10-150 | JA125-27-200 |

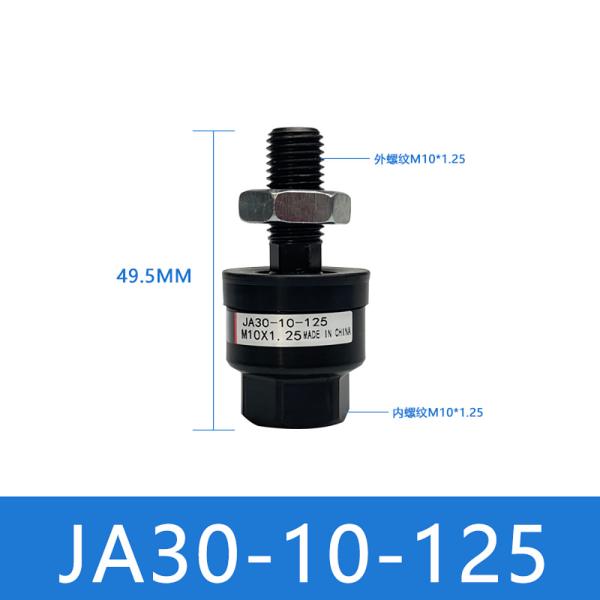

| JA30-10-125 | JA140-30-150 |
| JA32-10-100 | JA160-30-200 |
| JA40-12-125 | JA160-33- 200 |
| JA40-12-150 | JA160-36-150 |
| JA40-12-175 | JA160-36-200 |
| JA40-14-125 | JA180-40-150 |
| JA40-14-150 | JA180-40-200 |
| JA63-16-150 | JA180-42-150 |
| JA63-16-200 | JA180-42-200 |
| JA63-18-150 | |
Applications:
Application Scenarios:
SMC's JA series floating joints are suitable for a variety of
applications:
- Pneumatic and hydraulic systems
- Automated machinery
- Handling systems
They are especially useful in situations where eccentricity and
parallelism need to be absorbed. In pneumatic and hydraulic
systems, JA series floating joints are used as a connection
solution for cylinders and hydraulic cylinders. In automated
machinery, they ensure the stable operation of the system by
connecting cylinders and driven bodies. In handling systems, JA
series floating joints improve handling efficiency and ensure the
stable operation of cylinders.
Market Positioning and User Evaluation:
SMC's JA series floating joints provide an efficient and flexible
connection solution for pneumatic systems. Their excellent design
and performance make them widely used in the field of industrial
automation. As a result, they have been positioned in the market as
a reliable and high-performing product.
Users have given high praise to SMC's JA series floating joints.
They have reported the following benefits:
- Absorb eccentricity and insufficient parallelism
- High temperature tolerance
- High load response ability
- Provides users with a stable and reliable pneumatic connection
solution
Overall, SMC's JA series floating joints are an efficient and
reliable solution for connecting pneumatic and hydraulic systems.
Their excellent design and performance have made them a popular
choice in the field of industrial automation.
