Product Description:
Design Features:
The floating joint design of this product can absorb the
eccentricity between the passive body and cylinder, providing a
more accurate connection method. Additionally, the design can also
handle insufficient accuracy of parallelism. There is no need for
axis alignment, which simplifies the installation process.
The product also has a high-temperature specification, making it
suitable for working environments ranging from -5 ℃ to 60 ℃. This
specification ensures connection stability under extreme
temperatures, helping you maintain a high level of performance.
The product has a high load handling capacity, with demonstrated
maximum applied tensile force on both the compression and tension
sides reaching up to 28000 N. This feature demonstrates the
excellent load-bearing capacity of the product.
Technical Specifications:
The product has a basic type of installation form, which provides a
stable connection method 2. It is specifically designed for
cylinders with a diameter of 100mm, making it highly suitable for
Cylinder 1.
The product is also equipped with a standard thread specification
of M26X1.5, making it easy to connect with cylinders and other
pneumatic components. The swing angle provides a range of ±5°,
allowing for a certain eccentricity of 0.5mm, providing greater
flexibility and adaptability.
The pressure range of the product ranges from 0.05-1 MPa, making it
suitable for various working pressures. Finally, the environmental
temperature and fluid temperature range from -5~60 ℃, ensuring the
product is highly adaptable to various working environments.
Technical Parameters:
| Connection | Flange |
| Color | Black |
| Cylinder Used | Air Cylinder / Hydraulic Cylinders |
| Type | Fittings |
| Series | JA Series |
| Connection Type Cylinder Side | Tapped |

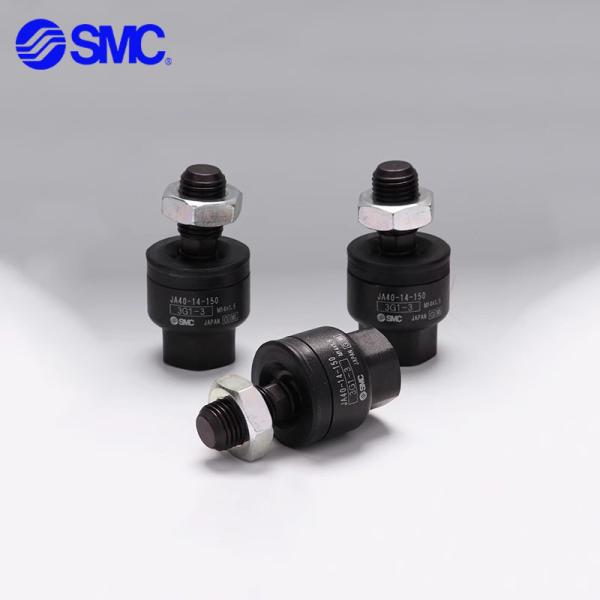

SMC JA Series Floating Joints
Applicable Cylinder Thread Size
Applications:
Application scenarios:
SMC's JA series floating joints are versatile and can be used in a
variety of different applications. One common use is in pneumatic
and hydraulic systems, where they are ideal for connecting
cylinders and hydraulic cylinders. They are particularly useful in
situations where eccentricity and parallelism need to be absorbed.
Another common application is in automated machinery. Here, the
floating joints are used to connect cylinders and driven bodies,
ensuring that the system operates stably and efficiently. Finally,
floating joints are also used in handling systems to guarantee the
stable operation of cylinders and improve handling efficiency.
Market positioning and user evaluation:
The JA series floating joints are well-respected in the market and
are positioned as an efficient and flexible connection solution for
pneumatic systems. Their design and performance are excellent,
making them widely used in the field of industrial automation.
Users have given high praise to SMC's JA series floating joint.
They have noted its ability to absorb eccentricity and insufficient
parallelism, tolerate high temperatures, and offer high load
response ability. Users appreciate that it provides a stable and
reliable pneumatic connection solution.
In summary, SMC's JA series floating joints are an efficient and
reliable solution for connecting pneumatic and hydraulic systems.
They are versatile and widely used, performing excellently in the
field of industrial automation. Satisfied users have attested to
the floating joint's ability to improve efficiency and offer a
stable and reliable connection.
