Product Description:

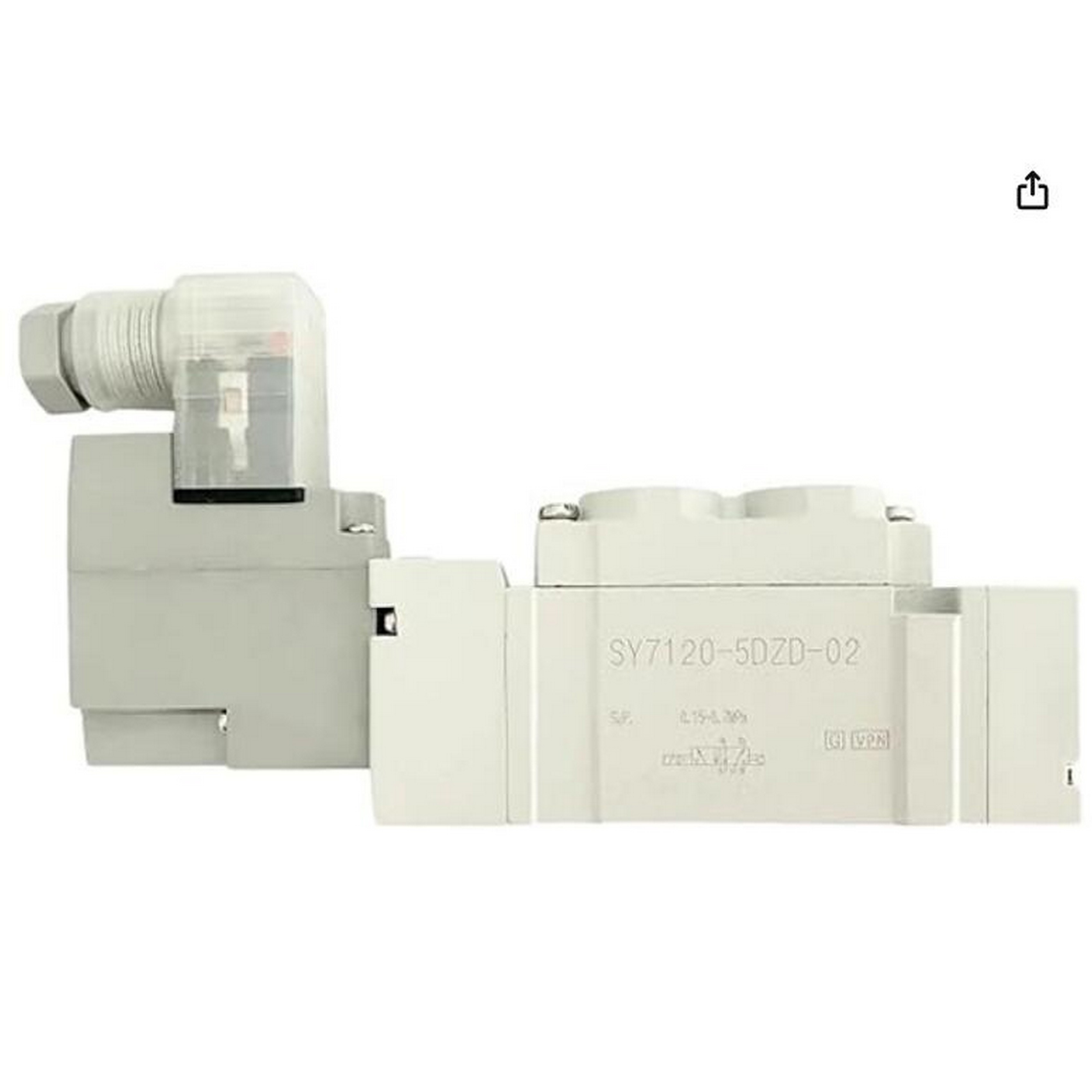

The SY series provides significant improvements in valve performance to meet your requirements in a cost-effective manner. It boasts high flow capacity with low power consumption despite its small and compact design.

Whether you prefer it with body ported or base mounted styles, the SY valve is versatile enough to be used either individually or as a manifold. This exceptional device delivers the performance and flexibility you need for all your fluid control needs.

Valve model	Type of actuation		Port size			Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)		1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
						C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY7□20 -□-02	2 position	Single	1 (P) Port 5, 3 (EA, EB) port	14		4.1	0.23	0.93	3.3	0.33	0.81	101	104	125	108
		Double										120	125	167	133
	3 position	Closed center				2.9	0.31	0.70	2.4	0.38	0.63	128	133	175	141
		Exhaust center				2.5	0.39	0.65	3.4 (2.1)	0.35 (0.38)	0.82 (0.54)
		Pressure center				4.3 (2.4)	0.23 (0.32)	0.97 (0.61)	2.2	0.39	0.58
SY7□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8		3.2	0.26	0.77	3.2	0.37	0.82	107	110	131	114
		Double										126	132	174	140
	3 position	Closed center				2.6	0.24	0.63	2.4	0.31	0.62	134	140	182	148
		Exhaust center				2.4	0.25	0.57	2.6 (1.9)	0.42 (0.46)	0.70 (0.56)
		Pressure center				3.3 (2.4)	0.28 (0.22)	0.78 (0.57)	2.2	0.34	0.60
SY7□20 -□-C10	2 position	Single		C10 One- touch fitting for ø10		3.8	0.26	0.86	3.2	0.34	0.82	103	105	126	109
		Double										122	127	169	135
	3 position	Closed center				2.8	0.27	0.67	2.4	0.21	0.59	130	135	177	143
		Exhaust center				2.5	0.25	0.59	2.7 (2.0)	0.38 (0.38)	0.70 (0.56)
		Pressure center				3.8 (2.4)	0.25 (0.31)	0.89 (0.61)	2.3	0.38	0.61

Applications:

The SMC Solenoid Valves are suitable for a wide range of product application occasions and scenarios, thanks to their versatile design and robust construction. Some of the most common uses for these valves include:

• Fluid power systems - SMC 5 Port Solenoid Valve is perfect for use in fluid power systems, where it can control the flow of liquids and gases with precision and efficiency.
• Industrial automation - SMC Electromagnetic Valve is widely used in industrial automation applications, where it can help to regulate the flow of materials through production lines and other manufacturing processes.
• Medical equipment - SMC electron magnetic valve is frequently used in medical equipment, where it can help to control the flow of gases and other substances in a safe and reliable manner.
• Food and beverage industry - The SMC Solenoid Valves are also suitable for use in the food and beverage industry, where they can help to regulate the flow of liquids and other substances in a hygienic and efficient manner.

The SMC Solenoid Valves are CE certified and have a minimum order quantity of 1. The price is negotiable and packaging details can be tailored to meet the client's requirements. Delivery times range from 1-7 work days after payment, and payment can be made via T/T, Western Union, or Paypal. The supply ability is 5000 pieces per month.

In terms of technical specifications, the SMC Solenoid Valves are designed to withstand impact and vibration, with resistance up to 150/30 m/s2. They can tolerate voltage fluctuations of up to ±10% of the rated voltage and can be mounted in any orientation. Lubrication is not required, and an indicator light with an LED display is included for easy monitoring.

Support and Services:

SMC offers a range of technical support and services for their Solenoid Valves product, including:

• Product selection assistance
• Installation guidance
• Troubleshooting and repair services
• Training and education on product use and maintenance

SMC also provides resources such as product manuals, technical specifications, and CAD drawings to assist with product selection and use.
