Product Description:

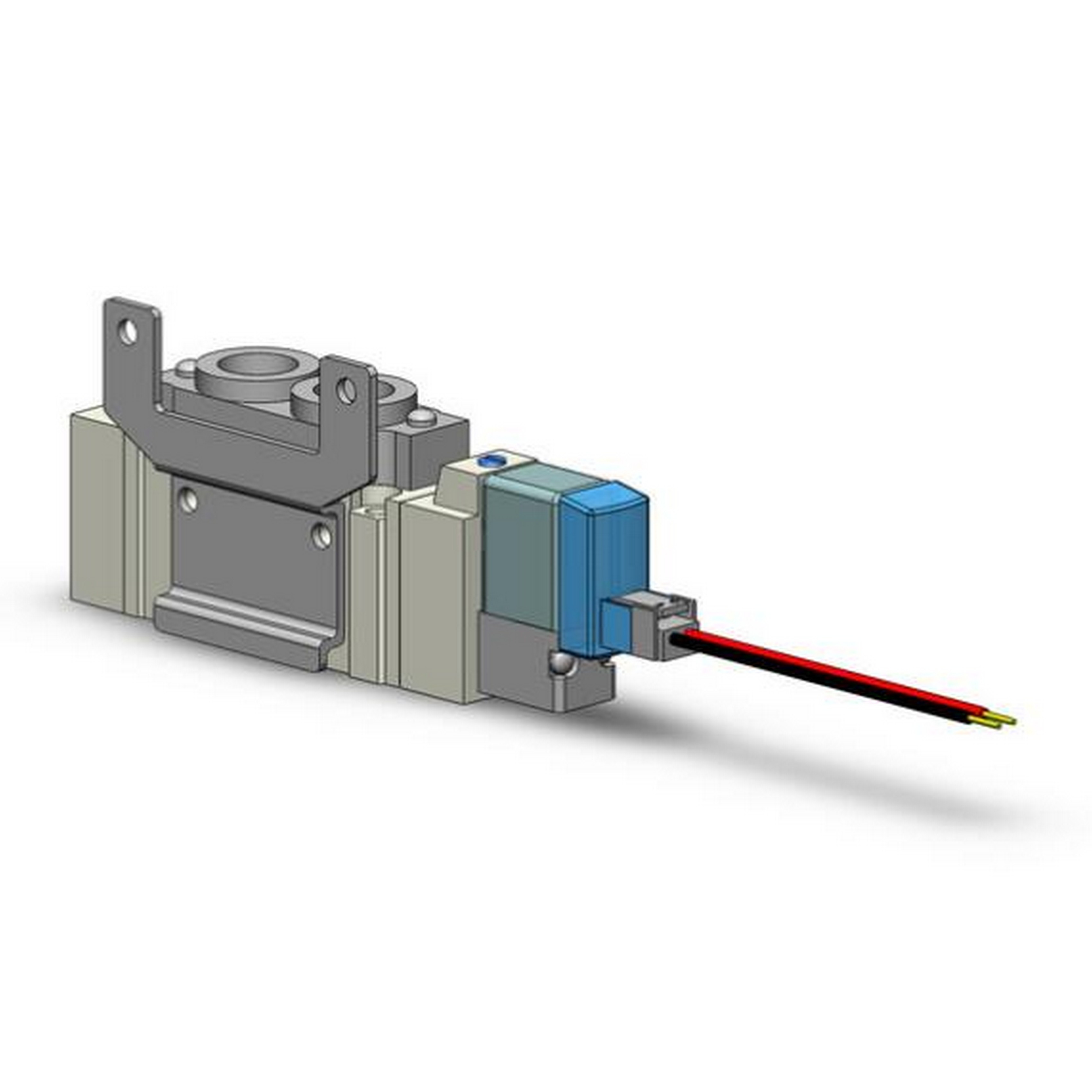

The Series SY is an innovative valve series with significant advancements in valve performance, catering to your specific needs and requirements. This series provides cost-effective solutions to customers who want to optimize their applications with the latest technology available in the market today. With a compact design, it boasts a high flow capacity while consuming low amounts of power, making it both environment-friendly and efficient.

The SY series is versatile, suitable for various applications ranging from commercial to industrial operations, and is available in two different styles: body ported and base mounted. With this valve series, customers have the flexibility of using it individually or mounting it into a manifold arrangement that suits their requirements, delivering much-needed flexibility.

If you're looking for a valve series solution that suits your specific needs, the SY series is perfect for your application. Whether you're a commercial, manufacturing, or industrial operation, the series provides low power consumption and high flow rates, thereby delivering an efficient solution while saving you money in the long run.

Valve model	Type of actuation		Port size		Flow rate characteristics						Weight (g)
			1, 5, 3 (P, EA, EB)	4, 2 (A, B)	1→4/2 (P→A/B)			4/2→5/3 (A/B→EA/EB)			Gro- mmet	L/M plug connector	DIN terminal	W M8 connector
					C (dm3/ (s·bar) )	b	Cv	C (dm3/ (s·bar) )	b	Cv
SY5□20 -□-01	2 position	Single	18	18	1.9	0.35	0.49	2.4	0.39	0.61	70	72	93	76
		Double									88	93	135	101
	3 position	Closed center			1.7	0.43	0.45	1.8	0.35	0.46	93	98	140	106
		Exhaust center			1.5	0.44	0.41	2.5 (1.5)	0.32 (0.43)	0.59 (0.40)
		Pressure center			2.2 (0.91)	0.46 (0.58)	0.61 (0.28)	1.8	0.38	0.46
SY5□20 -□-C4	2 position	Single		C4 touch fitting	0.75	0.43	0.20	0.85	0.64	0.30	94	96	117	100
		Double									111	117	159	125
	3 position	Closed center			0.74	0.40	0.19	0.84	0.57	0.28	117	122	164	130
		Exhaust center			0.75	0.36	0.19	0.84 (0.84)	0.64 (0.53)	0.30 (0.27)
		Pressure center			0.78 (0.71)	0.44 (0.37)	0.21 (0.18)	0.84	0.57	0.27
SY5□20 -□-C6	2 position	Single		C6 One- touch fitting for ø6	1.5	0.33	0.33	2.0	0.37	0.52	88	91	112	95
		Double									106	111	153	119
	3 position	Closed center			1.3	0.31	0.33	1.6	0.32	0.39	111	116	158	124
		Exhaust center			1.3	0.33	0.33	1.8 (1.4)	0.35 (0.37)	0.44 (0.35)
		Pressure center			1.7 (0.80)	0.31 (0.47)	0.42 (0.23)	1.7	0.33	0.44
SY5□20 -□-C8	2 position	Single		C8 One- touch fitting for ø8	1.9	0.21	0.45	2.3	0.29	0.57	80	82	103	86
		Double									98	103	145	111
	3 position	Closed center			1.6	0.29	0.39	1.7	0.38	0.46	103	108	150	116
		Exhaust center			1.4	0.38	0.39	2.0 (1.5)	0.37 (0.41)	0.52 (0.43)
		Pressure center			2.2 (1.6)	0.32 (0.44)	0.56 (0.44)	1.8	0.41	0.50

Applications:

The SMC Solenoid Valve is a 5 port valve that can be used in a variety of applications, including air, water, oil, and gas. It is designed to withstand impact and vibration up to 150/30 m/s2, making it an ideal choice for use in harsh environments. The valve also features an LED indicator light, which provides a visual indication of the valve's status.

The SMC Solenoid Valve is highly versatile and can be used in a wide range of scenarios. For example, it can be used in pneumatic systems to control the flow of air to various components, such as cylinders and actuators. It can also be used in hydraulic systems to control the flow of oil to various components, such as motors and pumps. Additionally, it can be used in water and gas systems to control the flow of fluids to various components, such as valves and regulators.

The SMC Solenoid Valve is easy to install and can be mounted in any orientation, making it a flexible solution for a wide range of applications. The valve does not require lubrication, which reduces maintenance and downtime. The allowable voltage fluctuation of ±10% of the rated voltage ensures that the valve can operate reliably even in fluctuating power conditions.

The packaging details of the SMC Solenoid Valve include carton packaging or as per the client's requirements. The delivery time is 1-7 work days after payment, and payment can be made through T/T, Western Union, or Paypal. The supply ability is 5000 pieces per month, ensuring that customers can receive their orders in a timely manner.

In summary, the SMC Solenoid Valve is a reliable, efficient, and versatile solution for controlling fluid flow in a wide range of applications. Its impact and vibration resistance, LED indicator light, and flexible mounting orientation make it an ideal choice for harsh environments. Its easy installation, low maintenance requirements, and wide range of applications make it a popular choice amongst customers.

Support and Services:

Our SMC Solenoid Valves product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, operation, maintenance, and troubleshooting of the product. Additionally, we offer training programs, product documentation, and online resources to help our customers get the most out of their SMC Solenoid Valves. Our services also include repair and replacement options to minimize downtime and reduce costs. Contact us to learn more about our technical support and services for the SMC Solenoid Valves.

Packing and Shipping:

Product Packaging:

The SMC Solenoid Valves will be packaged in a sturdy cardboard box with foam inserts to ensure safe transportation. Each valve will be individually wrapped in bubble wrap to prevent any scratches or damage during shipping. The box will also include an instruction manual for installation and use.

Shipping:

The SMC Solenoid Valves will be shipped via a reliable courier service to ensure timely and safe delivery. Customers will receive a tracking number to monitor the progress of their shipment. Shipping rates will be calculated based on the customer's location and the weight of the package.
