    CY1S25-100/200/300/.../800/.../1500(Z) Piston Pneumatic Cylinder Customizable

    Ask Lasest Price
    Brand Name : SMC
    Certification : CE
    Price : Negotiation
    Delivery Time : 1-7Work Days After Payment
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000 pieces/1Month
    Model Number : CY1S25-100/200/300/.../800/.../1500(Z)
    • Product Details
    • Company Profile

    CY1S25-100/200/300/.../800/.../1500(Z) Piston Pneumatic Cylinder Customizable

    Product Description:

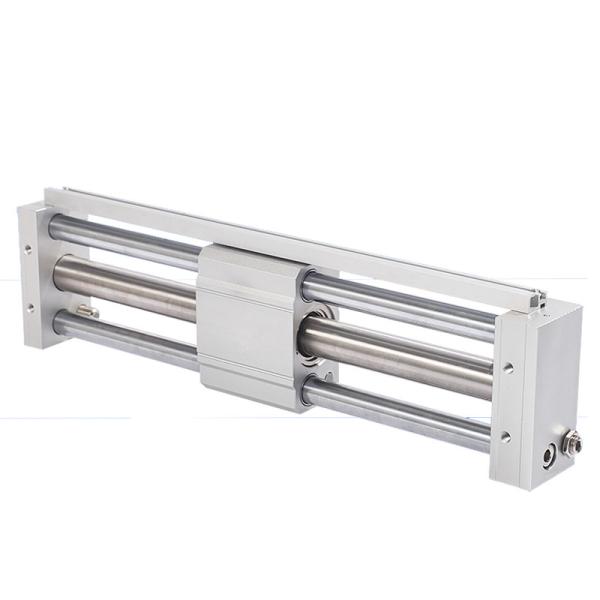

    The CY1S magnetic coupling rodless cylinder is designed to provide reliable performance in various industrial applications. It operates within a maximum pressure of 0.7 MPa and a minimum pressure of 0.18 MPa, ensuring high levels of efficiency.

    This product is designed to operate in an environment and fluid temperature range of -10 to 60 ° C, making it suitable for use in various environments, including those with extreme temperatures.

    The piston speed of the CY1S magnetic coupling rodless cylinder ranges from 50 to 400 millimeters per second. This enables the cylinder to provide a fast and smooth motion, making it ideal for applications that require high-speed operation.

    The rodless cylinder piston transmits its action to the external slider through magnetic coupling force, without the need for a piston rod. This saves installation space, which is less than that of a regular cylinder.

    The CY1S magnetic coupling rodless cylinder is designed to ensure excellent sealing performance. The piston is separated from the slide table to prevent dust and dirt from entering the system, thus extending the service life of the rodless cylinder.

    The rodless cylinder is also equipped with fixed buffer devices at both ends. This ensures smooth and impact-free reversing action while avoiding mechanical damage.

    The theoretical force of the CY1S magnetic coupling rodless cylinder is 500N, with a maximum load of 2000N, and a maximum force distance of 10Nm.

    All these features make the CY1S magnetically coupled rodless cylinder suitable for various industrial applications, especially in scenarios that require high-speed, smooth motion, and work in extreme temperature environments.

    Technical Parameters:

    FluidAir
    PROOF PRESSURE1.05MPA
    Piston speed50-500mm/s
    Temperature range-10—60℃
    BrandSMC
    Custom-made Specifications0.18 To 0.7

    This is information about the CY1S magnetic coupling rodless cylinder, also known as a magnetic coupling rodless cylinder. It is a product from SMC cylinder.

    Applications:

    Whether you are looking for a cylinder for industrial or personal use, the SMC Cylinder is customizable to your specific requirements. With a piston speed of 50-500mm/s and a proof pressure of 1.05MPA, this cylinder is capable of handling a wide range of applications. Additionally, it has a temperature range of -10—60℃, making it suitable for use in a variety of environments.

    The CY1S series of SMC Cylinder is a versatile product that can be used in a variety of applications. It is suitable for use in industries such as automotive, packaging, and more. Its custom-made specifications range from 0.18 to 0.7, making it suitable for a wide range of tasks.

    The SMC Cylinder is fluid-powered, making it an ideal product for applications that require the use of air. It is also easy to install and operate, making it a low-maintenance product that can be used by anyone.

    The SMC Cylinder comes with a variety of payment options, including T/T, Western Union, and Paypal. It also has a fast delivery time of 1-7 work days after payment, ensuring that you receive your product quickly. The packaging details for this product include carton or as the clients require, ensuring that your product is well-protected during shipping.

    With a supply ability of 5000 pieces per month, the SMC Cylinder is a reliable and high-quality product that can help you meet your needs. So why wait? Order your SMC Cylinder today and experience the benefits of this versatile and customizable product.

    Packing and Shipping:

    Product Packaging:

    • Individual packaging in bubble wrap
    • Multiple cylinders packaged in a sturdy cardboard box
    • Box dimensions: 12 in x 8 in x 6 in
    • Gross weight: 5 lbs

    Shipping:

    • Ships within 1-2 business days from order placement
    • Standard shipping via UPS or FedEx
    • Expected delivery time: 3-5 business days
    • Shipping cost calculated at checkout based on destination and weight
