Product Description:

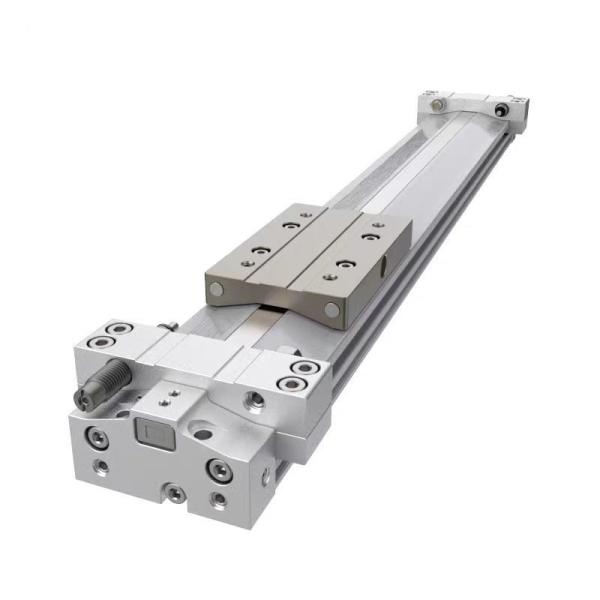

The Basic Properties of My1b Series Mechanical Engagement Rodless
Cylinder
The my1b series rodless cylinder has several basic properties,
including cylinder diameter, stroke, magnetic switch, buffer type,
and more.
Bore and Stroke
The My1b series rodless cylinder has a diameter range of 10mm to
100mm and a maximum stroke of 5000mm. Specific models, like
my1b32-800z, have a cylinder diameter of 32mm and a stroke of
800mm. Other models, like My1b32-300z, also have a cylinder
diameter of 32mm but a stroke of 300mm.
Magnetic Switch
The magnetic switch configuration of my1b series rodless cylinder
is different across models. For instance, the number of magnetic
switches of my1b32-300z can be 2 or none. Additionally, the model
and number of magnetic switches can be chosen based on the
requirements of the specific application. For instance, ø 10 only
has g, while ø 16 only has a unit. There is no travel adjustment
unit on ø 50, ø 63, ø 80, and ø 100.
Buffer Form
The my1b series rodless cylinders are air cushioned to reduce
impact and noise during movement. This helps improve equipment
stability and service life.
Technical Parameters:
| Brand | SMC |
|---|
| Fluid | Air |
|---|
| Bore sizes (mm) | 10, 16, 20, 25, 32, 40, 50, 63 |
|---|
| Type | Cylindre |
|---|
| Model | MY1B series |
|---|
| Temperature range (℃) | -10—60 |
|---|
| Customizable | Yes |
|---|
Applications:
The temperature range for these cylinders is between -10 to 60℃ and
the bore sizes are available in 10, 16, 20, 25, 32, 40, 50 & 63
(mm). These cylinders are suitable for a wide range of
applications, including but not limited to:
- Mechanical joint rodless cylinder applications
- MY1B type mechanical rodless cylinder applications
- General rodless cylinder applications
These cylinders are designed to provide excellent performance in a
variety of industrial and commercial settings. They are perfect for
use in applications that require a high degree of precision,
reliability, and durability. With their advanced design, these
cylinders are capable of delivering exceptional results even in the
harshest of environments.
If you are looking for a high-quality Piston Pneumatic Cylinder
product, SMC is the brand to choose. With their commitment to
quality and innovation, you can be confident that you are getting a
product that is both reliable and effective. So why wait? Contact
SMC today to learn more about their Piston Pneumatic Cylinder
products and how they can help you achieve your goals.
